The Talaria Sting is powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap.
Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, our torque and efficiency make this bike an outstanding performer on the road or off.
Forged for adventure and built for life, Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe and fun riding experience through even the toughest terrains.

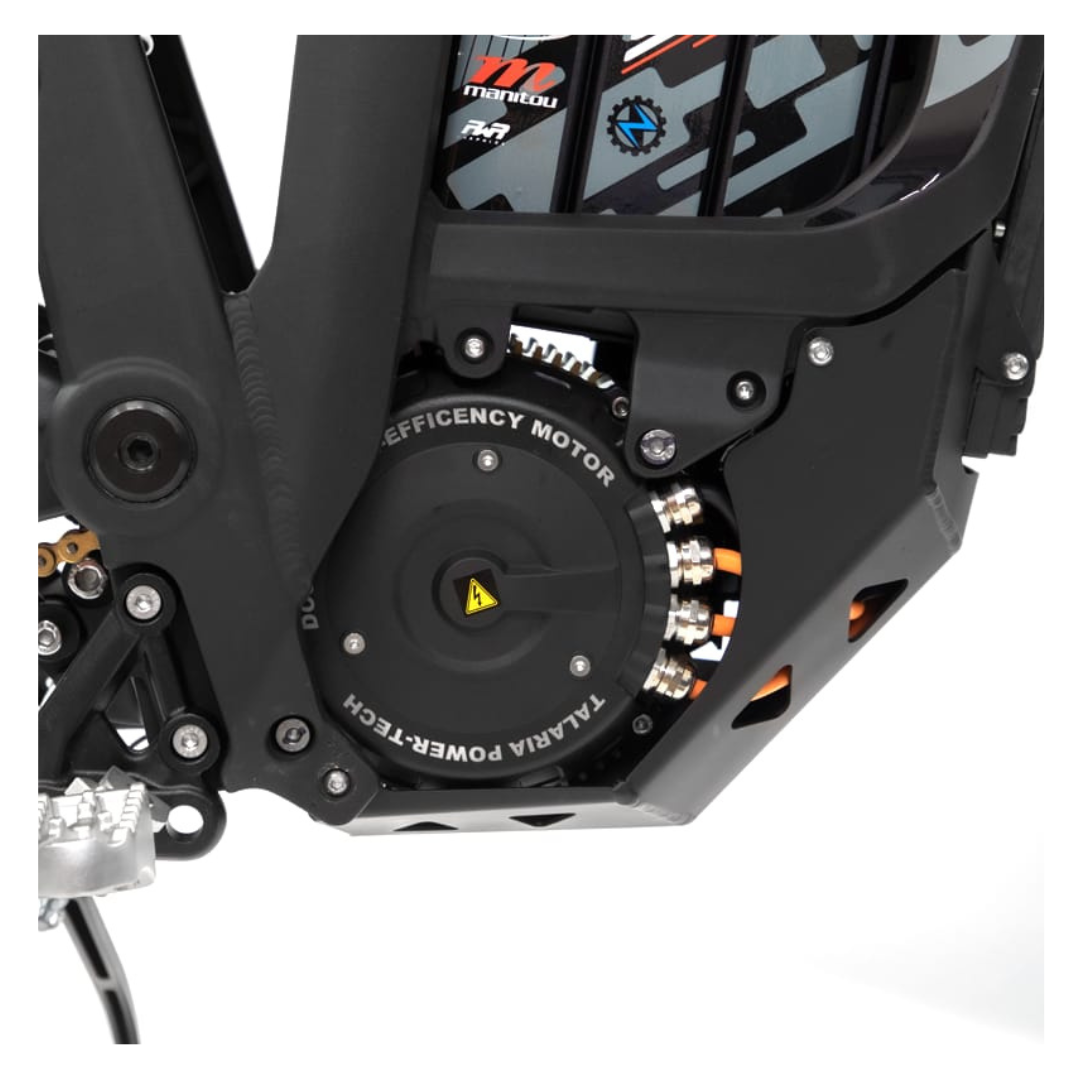

The high-efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 34N.m peak torque and 284N.m peak torque to the rear wheel.
With exquisitely crafted high-accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive system. It’s time to say goodbye to that broken-belt anxiety.
Rated Voltage - 60v (DC)
Rated Power / Peak Power - 3700W @ 2100rpm
Shaft Output Torque - 29.5nm
Transmission - Gearbox + Chain
Rated Torque / Peak Torque - 8.5nm / 31.8nm
Peak Efficiency - 96.6%
Type - PMSM
Mounting Position - Centre Frame
Weight - 7kg
External Diameter - 180mm
Axial Length - 130mm
Cooling Method - Air Cooled
Type - FOC
Weight - 1.6kg
Dimensions (LxWxH) - 240mm x 110mm x 50mm
Peak Efficiency - 98.5%
Travelling Wave Current - 85A
Highest Temperature - 100 °C
Rated Rotation Speed - 4300 rpm
Range of Rotation Speed - 0-5300 rpm
Peak Efficiency - 98%
Range of Efficiency - 1.4mm - 22.5mm
Max Range - *63 Miles
Battery - 60v 38.4A Lithium LG Cells
Speedometer - TFT Digital
Battery Life Time - 800 Cycles Before
Charger - 10A 60V
Charging Time - **4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Max Load - 100kg
Net Weight - 58kg
Forks - Manitou (Optional) / RST - DNM
Wheel Type - Spoke Wheels 19x1.6
Brakes - 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH) - 1870mm x 780mm x 1040mm
Chassis - Swing Arm Material - 6061 T4 & T6 Aluminium Alloy
Chassis Construction Method - Forged 8000 Tons of Pressure
Rear Shock Absorber - Fastace with Linkage
Front Tyre Size - 70/100-19
Rear Tyre Size - 80/100-19
Chassis Weight - 9.5kg
Chassis Surface - Anodizing Paint Treated
Headlight - LED
Tyres - CST
Brake Discs - 203mm
Minimum Ground Clearance - 270mm
